DO-41 BZX85C2V7 Thru BZX85C75 Zener Diode Glass

DO-41 Glass Package 1.3W 2.7V-75V Zener Diode BZX85C2V7 Thru BZX85C75

Features

1. High reliability
2. Very sharp reverse characteristic
3. Low reverse current level
4. VZ-tolerance±5%

Applications

Voltage stabilization

Absolute Maximum Ratings

Tj=25℃

Parameter	Test Conditions	Type	Symbol	Value	Unit
Power dissipation	I=4mm T_L≤25℃		Pv	1.3	W
Junction temperature			Tj	175	℃
Storage temperature range			Tstg	-65~+175	℃

Maximum Thermal Resistance

Parameter	Test Conditions	Symbol	Value	Unit
Junction ambient	I=9.5mm(3/8') T_L=constant	R_thJA	110	K/W

Electrical Characteristics

Tj=25℃

Parameter	Test Conditions	Type	Symbol	Min	Typ	Max	Unit
Forward voltage	I_F=200mA		V_F			1	V

Type	Vznom	I_ZT for V_ZT and r_zjT			r_zjT at I_ZK		I_R at V_R		TK_VZ
BZX85C	V	mA	V¹⁾	Ω	Ω	mA	μA	V	%/K
2V7	2.7	80	2.5~2.9	＜20	＜400	1	＜150	1	-0.09~-0.06
3V0	3.0	80	2.8~3.2	＜20	＜400	1	＜100	1	-0.08~-0.05
3V3	3.3	80	3.1~3.5	＜20	＜400	1	＜40	1	-0.08~-0.05
3V6	3.6	60	3.4~3.8	＜20	＜500	1	＜20	1	-0.08~-0.05
3V9	3.9	60	3.7~4.1	＜15	＜500	1	＜10	1	-0.08~-0.05
4V3	4.3	50	4.0~4.6	＜13	＜500	1	＜3	1	-0.06~-0.03
4V7	4.7	45	4.4~5.0	＜13	＜500	1	＜3	1	-0.05~+0.02
5V1	5.1	45	4.8~5.4	＜10	＜500	1	＜1	1	-0.02~+0.02
5V6	5.6	45	5.2~6.0	＜7	＜400	1	＜1	1	-0.05~+0.05
6V2	6.2	35	5.8~6.6	＜4	＜300	1	＜1	2	0.03~0.06
6V8	6.8	35	6.4~7.2	＜3.5	＜300	1	＜1	3	0.03~0.07
7V5	7.5	35	7.0~7.9	＜3	＜200	1	＜1	5	0.03~0.07
8V2	8.2	25	7.7~8.7	＜5	＜200	0.5	＜1	6.2	0.03~0.08
9V1	9.1	25	8.5~9.6	＜5	＜200	0.5	＜1	6.8	0.03~0.09
10	10	25	7.7~8.7	＜7	＜200	0.5	＜0.5	6.2	0.03~0.1
11	11	20	10.4~11.6	＜8	＜300	0.5	＜0.5	8.2	0.03~0.11
12	12	20	11.4~12.7	＜9	＜350	0.5	＜0.5	9.1	0.03~0.011
13	13	20	12.4~14.1	＜10	＜400	0.5	＜0.5	10	0.03~0.011
15	15	15	13.8~15.6	＜15	＜500	0.5	＜0.5	11	0.03~0.011
16	16	15	15.3~17.1	＜15	＜500	0.5	＜0.5	12	0.03~0.011
18	18	15	16.8~19.1	＜20	＜500	0.5	＜0.5	13	0.03~0.011
20	20	10	18.8~21.2	＜24	＜600	0.5	＜0.5	15	0.03~0.011
22	22	10	20.8~23.3	＜25	＜600	0.5	＜0.5	16	0.04~0.012
24	24	10	22.8~25.6	＜25	＜600	0.5	＜0.5	18	0.04~0.012
27	27	8	25.1~28.9	＜30	＜750	0.25	＜0.5	20	0.04~0.012
30	30	8	28~32	＜30	＜1000	0.25	＜0.5	22	0.04~0.012
33	33	8	31~35	＜35	＜1000	0.25	＜0.5	24	0.04~0.012
36	36	8	34~38	＜40	＜1000	0.25	＜0.5	27	0.04~0.012
39	39	6	37~41	＜50	＜1000	0.25	＜0.5	30	0.04~0.012
43	43	6	40~46	＜50	＜1000	0.25	＜0.5	33	0.04~0.012
47	47	4	44~50	＜90	＜1500	0.25	＜0.5	36	0.04~0.012
51	51	4	48~54	＜115	＜1500	0.25	＜0.5	36	0.04~0.012
56	56	4	52~60	＜120	＜2000	0.25	＜0.5	39	0.04~0.012
62	62	4	58~66	＜125	＜2000	0.25	＜0.5	43	0.04~0.012
68	68	4	64~72	＜130	＜2000	0.25	＜0.5	51	0.04~0.012
75	75	4	70~79	＜135	＜2000	0.25	＜0.5	56	0.04~0.012

1) Tighter tolerances available request:
BZX85B… ±2% of VZnom

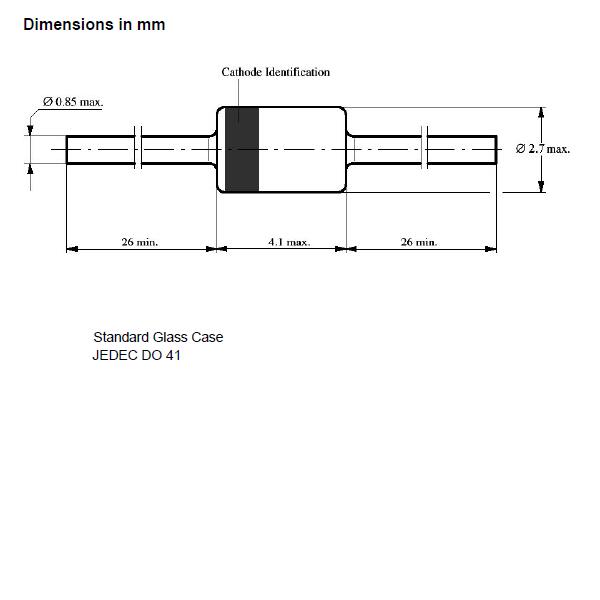

Size
