3.0A Schottjy Barrier Rectifier Diode 1N5820 1N5821 1N5822 DO-27
DIP Through
FEATURES:
* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
* Epitaxial construction
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Axial leads, solderable per MIL-STD-202,
method 208 guranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 1.10 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
| TYPE NUMBER | 1N5820 | 1N5821 | 1N5822 | UNITS |
| Maximum Recurrent Peak Reverse Voltage | 20 | 30 | 40 | V |
| Maximum RMS Voltage | 14 | 21 | 28 | V |
| Maximum DC Blocking Voltage | 20 | 30 | 40 | V |
Maximum Average Forward Rectified Current at T L (see fig.1) | 3.0 | A |
Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) | 80 | A |
| Maximum Instantaneous Forward Voltage at 3.0A | 475 | 500 | 525 | V |
| Maximum DC Reverse Current Ta=25 C | 2.0 | mA |
| at Rated DC Blocking Voltage Ta=100 C | 20 | mA |
| Typical Junction Capacitance (Note1) | 250 | pF |
| Typical Thermal Resistance Rq JA (Note 2) | 20 | C/W |
| Operating Temperature Range T J | -65 +125 | C |
| Storage Temperature Range T STG | -65 +150 | C |

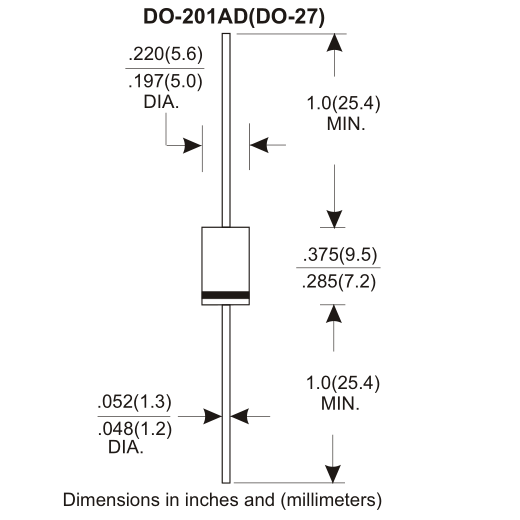

Drawing:
