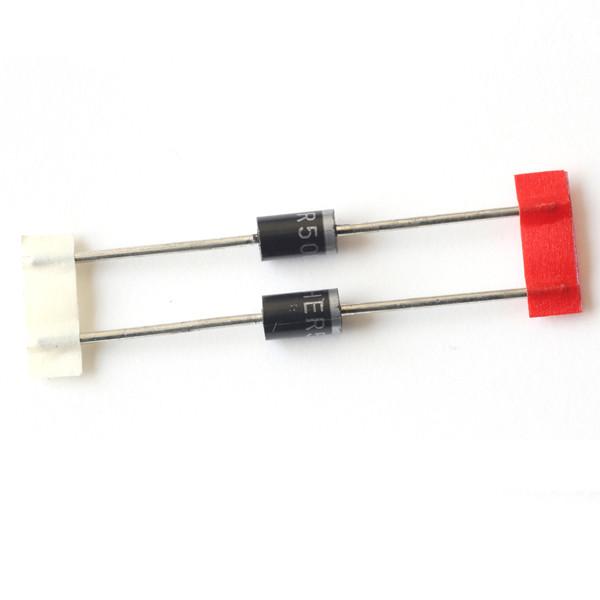

High Efficiency Rectifier Diode HER501 to HER508 5A DO-27 Package
DIP Through
FEATURES
* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability
* High speed switching
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Axial leads, solderable per MIL-STD-202,
method 208 guranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 1.10 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
| TYPE NUMBER | HER 501 | HER 502 | HER 503 | HER 504 | HER 505 | HER 506 | HER 507 | HER 508 | Unit |
| Maximum Recurrent Peak Reverse Voltage | 50 | 100 | 200 | 300 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS Voltage | 35 | 70 | 140 | 210 | 280 | 420 | 580 | 700 | V |
| Maximum DC Blocking Voltage | 50 | 100 | 200 | 300 | 400 | 600 | 800 | 1000 | V |
Maximum Average Forward Rectified Current .375"(9.5mm) Lead Length at Ta=75 C | 5.0 | A |
Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 5.0A | 200
1.0 |
1.3 |
1.85 | A
V |
Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Ta=100 C | 10
200 | uA
uA |
| Maximum Reverse Recovery Time (Note 1) | 50 | 70 | nS |
| Typical Junction Capacitance (Note 2) | 75 | pF |
| Operating and Storage Temperature Range TJ, TSTG | -65 +150 | C |
