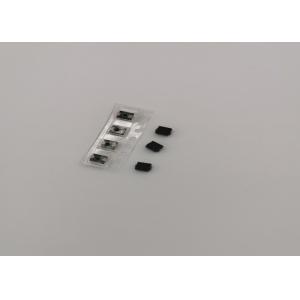

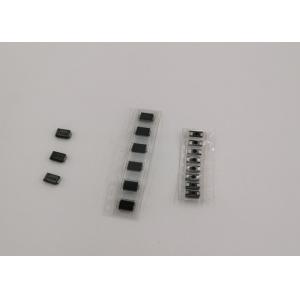

Surface Mount High Efficiency Rectifier Diode 1KV 2A DO214AA HS2M

FEATURES

Glass passivated junction chip.
For surface mounted application
Low forward voltage drop
Low profile package
Built-in stain relief, ideal for automatic placement
Fast switching for high efficiency
High temperature soldering: 260℃/10 seconds at terminals
Plastic material used carries Underwriters Laboratory Classification 94V-O

MECHANICAL DATA

Cases: Molded plastic
Terminals: Solder plated
Polarity: Indicated by cathode band
Packing: 12mm tape per E1A STD RS-481
Weight: 0.093 gram

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.

NOTES:
1. Reverse Recovery Time test condition: IF=0.5A, IR=1.0A, IRR=0.25A
2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3. Mounted on P.C.B. with 0.4”x0.4” ( 10 x 10 mm ) Copper Pad Areas.

Drawing:

Our service:

• 18 years business experience, Classification of quotation,fast accurate.
• One-stop purchasing service.
• Sufficient supply in stock.
• Minimum lead time.
• Original and authorized agents sources.
• Timely reply on customer service.

Xuyang is a mature manufacturer and supplier of diodes which was found in 2001, the integrated production lines including assembly, welding, testing and packaging machinery are settled in China. Our mission is to “make our customers satisfied using best resource and service”. We are also good at the field of the NTC Thermistor.

We have the corporation with different firms based in the USA, Japan and China, so we can diversify our products using the best raw material. Orders with different sizes and requirements are welcomed. There is an annual production of 200 million units in each line, and 75 per cent of regular specs in-stock, we can fill your volume orders within 15 days. The requests with the small number of units are also welcomed.
