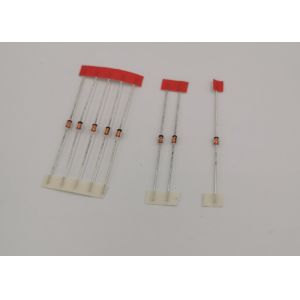

High Speed Switching Diode 1N914 With DO-35 Case Fast Switching
Diode
Features
Fast switching speed
High reliability
High conductance
For general purpose switching application
.
Mechanical Data
Case: DO-35 Glass Case
Therminals: solderable per MIL-STD-202,method 208 guranteed
Marking: Type number
Weight: approx. 0.13g
Maximum Ratings and Thermal Characteristics (TA = 25°C unless otherwise noted)
Maximum Ratings (TA = 25°C unless otherwise noted)
| characterisic | Symbol | Limit | Unit |
| Non-Repetitive Peak Reverse Voltage | VRM | 100 | V |
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage | VRRM VRWM VR | 75 | V |
| RMS Reverse Voltage | VR(RMS) | 53 | V |
Forwar Continuous Current (Note 1) | IFM | 150 | mA |
Average Rectified Output Current (Note 1) | Io | 75 | mA |
Non-Repetitive Peak Forward Surge Current @ t = 1s @ t = 1us | IFSM | 1.0 1.0 | A |
Power Dissipation (Note 1) Derate Above 25°C | Pd | 500 | mW mW/°C |
| Thermal Resistance Junction to Ambient Air (Note 1) | RthJA | 300 | K/W |
| Junction and Storage Temperature Range | Tj, TSTG | –65 to +175 | °C |
Electrical Characteristics (TJ = 25°C unless otherwise noted)
| Parameter | Symbol | Test Condition | Min | Max | Unit |
| Maximum Forward Voltage | VFM | IF = 10mA | — | 1.0 | V |
| Maximum Peak Reverse Current | IRM | VR = 75V VR = 20V, TJ = 150°C VR = 20V
| — | 5.0 50 25 | μA μA nA
|
| Capacitance | Cj | VR = 0V, f =1.0 MHz | — | 4 | pF |
| Reverse Recovery Time | trr | IF = 10mA, IR = 1mA, VR = 6V , RL = 100Ω | — | 4 | ns |
Note: 1. Valid provided that lead are kept at ambient temperature
at a distance of 8.0mm.
