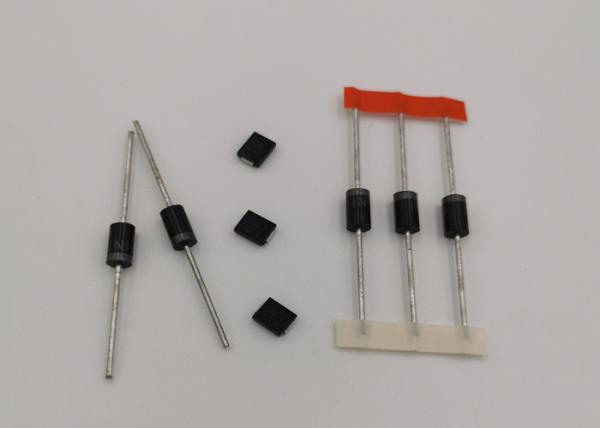

3A 100-800V Fast Recovery Rectifier Diode With High Surge Capability

3A Fast Recovery Rectifier Diode With 100 to 800V Voltage BY396 Thru BY399

Fast Recovery Rectifier Diode is a semiconductor device which possesses short reverse recovery

time for rectification purpose at high frequency. A quick recovery time is crucial for rectification of

high-frequency AC signal. Diodes are mostly used in rectifiers because they possess ultra-high

switching speed.

FEATURES

1. Plastic package has Underwriters Laboratory Flammability Classification 94V-0
2. Metal silicon junction ,majority carrier conduction
3. Guard ring for overvoltage protection
4. Low power loss ,high efficiency
5. High current capability ,Low forward voltage drop
6. High surge capability

7. For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
8. High temperature soldering guaranteed:260 C/10 seconds at terminals

9. Component in accordance to RoHS 2015/863/EU

MECHANICAL DATA

· Case:: JEDEC DO-201AD molded plastic body

· Terminals: Plated axial leads, solderable per MIL-STD-750,method 2026

· Polarity: Color band denotes cathode end

· Mounting Position: Any

· Weight: 1.18 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.

Size:

What can you from XUYANG?

Best service: with 10 years experience in exporting sales staff will service you.

High quality: help you to avoid purchasing risk.

Short delivery: help you to save time.

Competitive price: the price is not the lowest but the highest cost performance

OEM/ODM: we are confident we can meet you OEM/ODm requirements.

Xuyang is a mature manufacturer and supplier of diodes which was found in 2001, the integrated production lines including assembly, welding, testing and packaging machinery are settled in China. Our mission is to “make our customers satisfied using best resource and service”. We are also good at the field of the NTC Thermistor.

We have the corporation with different firms based in the USA, Japan and China, so we can diversify our products using the best raw material. Orders with different sizes and requirements are welcomed. There is an annual production of 200 million units in each line, and 75 per cent of regular specs in-stock, we can fill your volume orders within 15 days. The requests with the small number of units are also welcomed.

Workshop:

Ceification:
