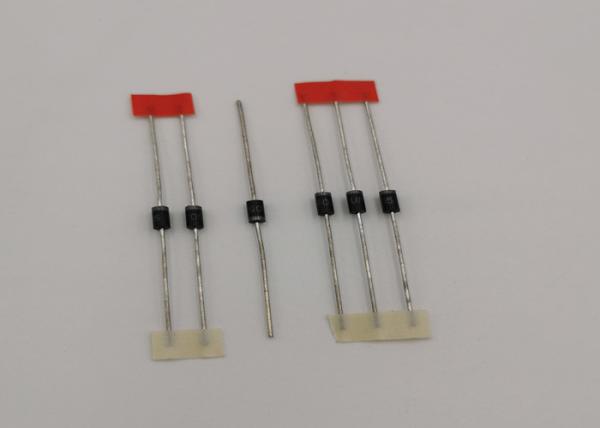

1A DO-41 Glass Passivated General Purpose Rectifier Diode 1N4001G-1N4007G

* Low forward voltage drop
* High current capability
* High reliability
* High surge current capability

Mechanical Data

* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Axial leads, solderable per MIL-STD-202,
method 208 guranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 0.34 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.

Drawing:

Why choose us?

1. ISO9001:2008 certified factory

2. 20 years rich experience in the diode production

3. Strict quality control, achieve customer's maximum satisfaction

4. The Annual production capacity is over 2 billion

Xuyang is a mature manufacturer and supplier of diodes which was found in 2001, the integrated production lines including assembly, welding, testing and packaging machinery are settled in China. Our mission is to “make our customers satisfied using best resource and service”. We are also good at the field of the NTC Thermistor.

We have the corporation with different firms based in the USA, Japan and China, so we can diversify our products using the best raw material. Orders with different sizes and requirements are welcomed. There is an annual production of 200 million units in each line, and 75 per cent of regular specs in-stock, we can fill your volume orders within 15 days. The requests with the small number of units are also welcomed.
