SOD-80 0.5W 2.4-75V Zener Diode ZMM5221B Thru ZMM5267B Tape in reel

SMD Zener diodes are widely used as voltage references and as shunt regulators to regulate the

voltage across small circuits. When connected in parallel with a variable voltage source so that it

is reverse biased, a SMD Zener diode conducts when the voltage reaches the diode's reverse

breakdown voltage. From that point on, the low impedance of the diode keeps the voltage across

the diode at that value.

Features

1. High reliability
2. Very sharp reverse characteristic
3. Low reverse current level
4. VZ-tolerance±5%

Absolute Maximum Ratings

Tj=25℃

Maximum Thermal Resistance

Electrical Characteristics

Tj=25℃

1) Based on DC-measurement at thermal equilibrium while maintaining the lead temperature(TL)

at 30℃, 9.5mm(3/8”) from the diode body.

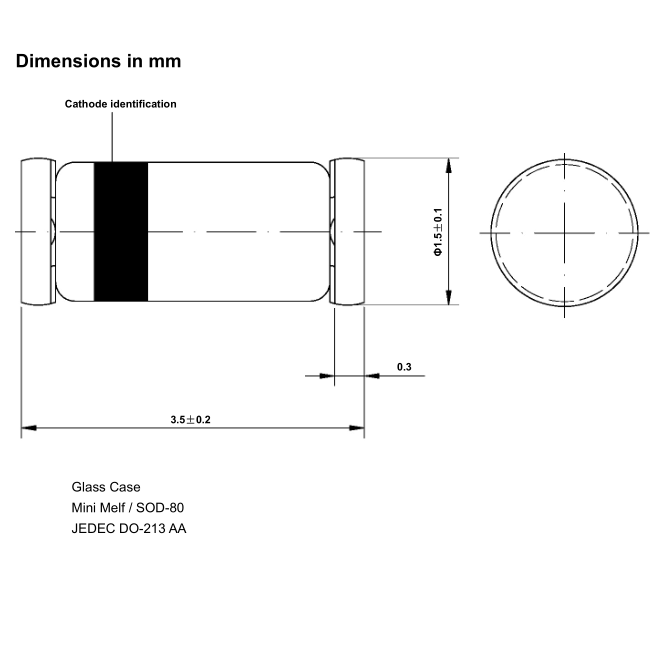

Size
