Low Forward Voltage Power Schottky Barrier Rectifier Diode MBR1035 Thru
MBR10200 TO-220AC
10A Schottky diode is an optimized product with low reverse leakage
at high temperature.
Due to the patented barrier technology, this product is able to
work normally under a high
junction temperature which can reach up to 110℃, and it finds a
wide range of applications,
such as converter, switching power supply, free wheeling diode,
reverse battery protection, etc.
FEATURES
· Plastic package has Underwriters Laboratory Flammability
Classifications 94V-0
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high efficiency
· For use in low voltage,high frequency inverters,free whelling,and
polarity protection applications
· High temperature soldering guaranteed: 250°C/10 seconds, 0.25"
(6.35mm) from case
MECHANICAL DATA
Case: Molded plastic, TO-220A
Epoxy: UL 94V-O rate flame retardant
Terminals: Leads solderable per MIL-STD-202 method 208 guaranteed
Polarity: As marked
Mounting position: Any Dimensions in inches and (millimeters)
Weight: 0.08ounce, 2.24gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
| Symbols | MBR1045 | MBR1050 | MBR1060 | MBR10100 | MBR10150 | MBR10200 | Units |
| Maximum Recurrent Peak Reverse Voltage | VRRM | 45 | 50 | 60 | 100 | 150 | 200 | Volts |
| Maximum RMS Voltage | VRMS | 31 | 35 | 42 | 70 | 105 | 140 | Volts |
| Maximum DC Blocking Voltage | VDC | 45 | 50 | 60 | 100 | 150 | 200 | Volts |
| Maximum Average Forward Rectified Current | I(AV) | 10.0 | Amp |
Peak repetitive forward current (sq. wave, 20 KHz) at TC = 135°C | IFRM | 20.0 | Amp |
Peak Forward Surge Current, 8.3ms single half-sine-wave superimposed on rated load (JEDEC method) | IFSM | 150 | Amp |
at IF = 10A, TC = 25°C Maximum Forward at IF = 10A, TC = 125°C Voltage (Note 1) at IF = 20A, TC = 25°C at IF = 20A, TC = 125°C | VF | 0.70 0.57 0.84 0.72 | 0.80 0.70 0.95 0.85 | 0.85 0.71 - - | 0.95 - - - | Volts |
Maximum Reverse Current at TC=25℃ at Rated DC Blocking Voltage TC=125℃ | IR | 0.1 | 0.2 | |
| 15 | 10 | 6 | mAmp |
| Typical Thermal Resistance | RθJC | 3.0 | ℃/W |
| Operating Temperature Range | TJ | -55 to +150 | ℃ |
| Storage Temperature Range | | -55 to +150 | ℃ |

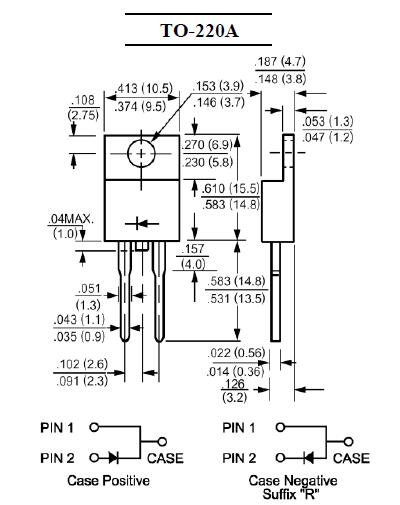

Size:
