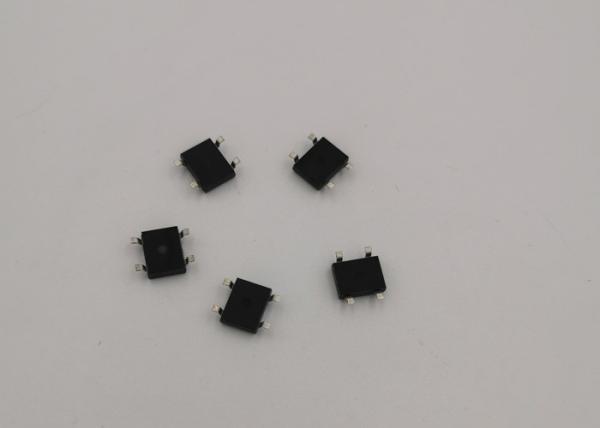

2.0Amp DB-S Package Bridge Diode Bridge Rectifier DB201S Thru
DB207S
FEATURES
* Plastic material has Underwriters Laboratory Flammability
Classification 94V-0
* High surge overload rating of 60 Amperes peak
* Ideal for printed circuit board
* Glass passivated chip junction
MECHANICAL DATA
* Case: Molded plastic, DB-S
* Epoxy: UL 94V-O rate flame retardant
* Terminals: Leads solderable per MIL-STD-202, method 208
guaranteed
* Mounting position: Any
Maximum Ratings & Thermal Characteristics
Rating 25℃ ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
| Parameter | Symbol | DB201S | DB202S | DB203S | DB204S | DB205S | DB206S | DB207S | UNITS |
| Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS bridge input Voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
Maximum Forward Voltage
at 2.0A DC and 25℃ | VF | 1.1 | V |
Maximum DC reverse current at rated TA =25 C DC blocking voltage per element TA =125 C | IR | 5.0 500 | μA |
Maximum average forward rectified output current at TA=40 C | IF(AV) | 2.0 | A |
Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) | IFSM | 60 | A |
| Typical Thermal Resistance (Note 2) | RθJA | 40 | ℃/W |
| Typical Thermal Resistance (Note 2) | RθJL | 15 | ℃/W |
| Typical junction capacitance (Note 1) | Cj | 25 | pF |
Operating junction and storage temperature range | TJ, TSTG | -55--150 | ℃ |
NOTES:
1- Measured at 1 MHZ and applied reverse voltage of 4.0 VDC.
2- Units mounted on P.C.B. with 0.5 x 0.5" (13 x 13mm) copper pads
Size:
