DIP-4 Round Single-phase Diode Bridge Rectifier RB151 Thru RB157
FEATURES
* Plastic material has Underwriters Laboratory Flammability
Classification 94V-0
* Ideal for printed circuit board mounting
* High surge current capability
* High temperature soldering guaranteed 265 C/10 seconds at 5 lbs
(2.3kg) tension
MECHANICAL DATA
* Case: Reliable low cost construction utilizing molded plastic
technique
* Terminals: Plated leads solderable per MIL-STD-202, Method 208
* Mounting position: Any
Maximum Ratings & Thermal Characteristics
(TA = 25°C unless otherwise noted)
| Parameter | Symbol | RB151 | RB152 | RB153 | RB154 | RB155 | RB156 | RB157 | Unit |
| Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC blocking voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
Maximum average forward rectified output current at TA=25 C | IF(AV) | 1.5 | A |
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) | IFSM | 50 | A |
| Rating for fusing (t < 8.3ms) | I2t | 10 | A2sec |
| Typical thermal resistance per element (1) | RθJA | 50.0 | °C/W |
| Typical junction capacitance per element (2) | Cj | 24 | pF |
| Operating junction and storage temperature range | TJ, TSTG | –55 to +150 | °C |
Maximum instantaneous forward voltage drop per leg at 1.5A | VF | 1.1 | V |
Maximum DC reverse current at rated TA =25 C DC blocking voltage per element TA =100 C | IR | 10 1000 | μA |
NOTES:
(1)Thermal resistance from Junction to Ambemt on P.C.board
mounting.
(2)Measured at 2.0MHz and applied reverse voltage of 4.0 volts.

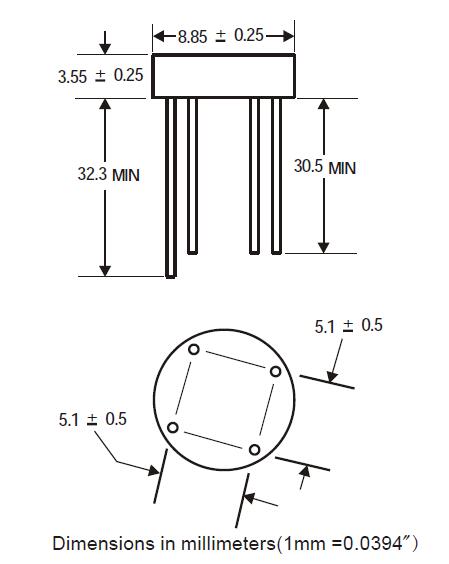

Size:
