    Glass Passivated SMD Diode Bridge Rectifier MB1S MB6S MB10S For Printed Circuit Board

    Single-phase Glass Passivated Mini Silicon SMD Diode Bridge Rectifier MB1S MB6S MB10S


    FEATURES


    1. Surage overload rating-30 Amperes peak

    2. Ideal for printed circuit board

    3. Reliable low cost construction utilizing molded

    4. Glass passived device

    5. Polarity symbols molded on body

    6. Mounting position : Any

    7. Weight: 0.5 gram


    Mechanical Data


    Epoxy: Device has UL flammabiltiy classification 94V-0

    UL listed the recognized component directory,file#E94233


    Maximum Ratings


    Catalog

    Number

    Device

    Marking

    Maximum

    Rccurrent

    Peak Reverse

    Voltage

    Maximum

    RMS

    Voltage

    Maximum

    DC

    Blocking

    MB05SMB05S50V35V50V
    MB1SMB1S100V70V100V
    MB2SMB2S200V140V200V
    MB4SMB4S400V280V400V
    MB6SMB6S600V420V600V
    MB8SMB8S800V560V800V
    MB10SMB10S1000V700V1000V


    Electrical Characteristics @ 25°C Unless Otherwise Specified


    Average Forward

    Current

    IF(AV)

    0.5A

    0.8A

    Note1 TA = 30°C

    Note2 TA = 30°C

    Peak Forward Surge

    Current

    IFSM30A8.3ms, half sine

    Maximum

    Instantaneous

    Forward Voltage

    VF1.0V

    IFM = 0.5A;

    TA = 25°C

    Maximum DC

    Reverse Current At

    Rated DC Blocking

    Voltage

    IR5 mATA = 25°C

    Typical Junction

    Capacitance

    CJ25pF

    Measured at

    1.0MHz, VR=4.0V

    Note1. Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
    Note2. On alum: substrate P.C.B with an rea of 0.8 x 0.8 x 0.25”
    ( 20 x 20 x 6.4mm ) mounte on 0.05 x 0.05 “( 13 x 13 mm ) solder pad.

    Pulse Test: Pulse Width 300msec, Duty Cycle 1%

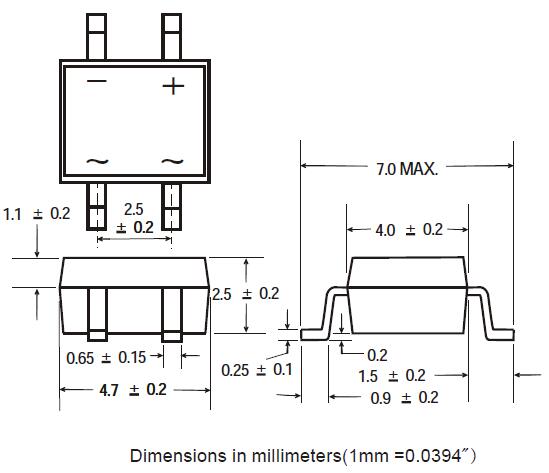

    Size:



    Why choose us?

    1. ISO9001:2008 certified factory

    2. 20 years rich experience in the diode production

    3. Strict quality control, achieve customer's maximum satisfaction

    4. The Annual production capacity is over 2 billion
