50A Single-Phase Silicon Bridge Rectifier Diode KBPC50005 thru
KBPC5010 Voltage 50-1000V
FEATURES
* Surge overload ratings to 300 amperes
* This series is UL listed under the Recognized
Component Index, file number E142814
* The plastic material used carries Underwriters Laboratory
flammability recognition 94V-0
* Universal 4-way terminals, snap-on, wrap-around,
solder or P.C. Board mounting
* Surge overload ratings to 400 amperes
* Electrically isolated metal case for maximum
heat dissipation
* Case to terminal isolation voltage 2500V
Mechanical Data
* Case: Metal case
* Terminals: Plated .025" (6.35mm) diameter
*Mounting Position: Bolt down on heat-sink with silicone thermal
compound between bridges and mounting surface for
maximum heat transfer efficiency
* Mounting Torque: 20 in-lb max
* Weight: 1.116 ounce,61.6 grams (approx)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
| TYPE NUMBER | KBPC 50005 | KBPC 5001 | KBPC 5002 | KBPC 5004 | KBPC 5006 | KBPC 5008 | KBPC 5010 | UNITS |
| Maximum Recurrent Peak Reverse Voltage | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS Voltage | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC Blocking Voltage | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
Maximum average forward rectified output current at T A =55 C | 50.0 | A |
Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) | 400 | A |
| Rating for fusing ( t<8.3ms | 664
| A |
| Typical thermal resistance per element (1) | 2.5 | A2 sec |
| Isolation voltage from case to leads | 2500
| uA |
| Operating Temperature Range | -55 +150 | C |
Maximum instantaneous forward voltage drop per leg at 17.5A | 1.0 | V |
Maximum DC reverse current at rated T A =25 C DC blocking voltage per element T A =125 C | 10
500 | uA |

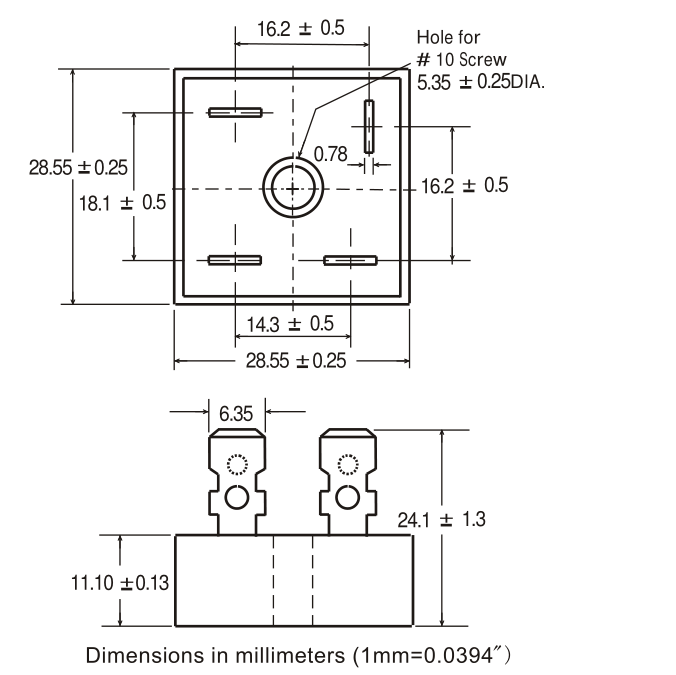

Size:
