3.0 Watt Surface Mount Silicon Zener Diode 3SMBJ5918B Thru
3SMBJ5956B With SMB Case
The Zener diodes are primarily used as voltage regulator devices
providing a reference voltage
for voltage regulators or to protect other semiconductor devices
from momentary voltage pulses.
These devices are specific type diodes designed to be operated in
the reverse breakdown region.
It allows current to flow in the forward direction in the same
manner as an ideal diode, but will also
permit it to flow in the reverse direction when the voltage is
above a certain value known as the
breakdown voltage, "zener knee voltage" or "zener voltage".
Features
• Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates
Compliant. See ordering information)
• 5.1 thru 200 Volt Voltage Range
• Low Inductance, Low Profile Mounting
• Glasss Passivated Junction
• Available On Tape and Reel
• Halogen free available upon request by adding suffix "-HF"
• Epoxy meets UL 94 V-0 flammability rating
• Moisture Sensitivity Level 1
Mechanical Data
• Terminals solderable per MIL-STD-750, Method 2026
• Polarity is indicated by cathode band.
• Packaging: Standard 12mm Tape (see EIA 481)
• Maximum temperature for soldering: 260℃ for 10 seconds.
Maximum Ratings @ 25℃ Unless Otherwise Specified
| Maximum Forward Voltage | VF | 1.5V | (Note: 2) |
| Steady State Power Dissipation | Pd | 3.0W | (Note: 3) |
| Operation and Storage Temperature | TJ, TSTG | -65℃ to +150 ℃ | |
| Thermal Resistance Junction toAmbient | RthJA | 42℃ /W | |
Note: 1. High Temperature Solder Exemptions Applied, see EU
Directive Annex 7.
2. Forward Current @ 200mA.
3. Mounted on 5.0mm2 (1oz thick) Iand areas.
Lead temperature at TL=75℃
ELECTRICAL CHARACTERISTICS(TL=30 centigrade unless otherwise noted)
(VF=1.5Volts
Max @IF=200mAdc for all types.
ZENER VOLTAGE VZ (*) | TEST CURRENT IZT | MAXIMUM DYNAMIC IMPEDANCE ZZT @IZT | KNEE CURRENT IZK | KNEE IMPEDANCE ZZK | MAXIMUM REVERSE CURRENT IR | REVERSE VOLTAGE VR | DEVICE MARKING |
| VOLTS | mA | OHMS | mA | OHMS | μA | VOLTS |
| 5.1 | 73.5 | 4 | 1 | 350 | 5 | 2 | H18B |
| 5.6 | 66.9 | 2 | 1 | 250 | 5 | 3 | H19B |
| 6.2 | 60.5 | 2 | 1 | 200 | 5 | 4 | H20B |
| 6.8 | 55.1 | 2.5 | 1 | 200 | 5 | 5.2 | H21B |
| 7.5 | 50 | 3 | 0.5 | 400 | 5 | 6 | H22B |
| 8.2 | 45.7 | 3.5 | 0.5 | 400 | 5 | 6.5 | H23B |
| 9.1 | 41.2 | 4 | 0.5 | 500 | 5 | 7 | H24B |
| 10 | 37.5 | 4.5 | 0.25 | 500 | 5 | 8 | H25B |
| 11 | 34.1 | 5.5 | 0.25 | 550 | 1 | 8.4 | H26B |
| 12 | 31.2 | 6.5 | 0.25 | 550 | 1 | 9.1 | H27B |
| 13 | 28.8 | 7 | 0.25 | 550 | 1 | 9.9 | H28B |
| 15 | 25 | 9 | 0.25 | 600 | 1 | 11.4 | H29B |
| 16 | 23.4 | 10 | 0.25 | 600 | 1 | 12.2 | H30B |
| 18 | 20.8 | 12 | 0.25 | 650 | 1 | 13.7 | H31B |
| 20 | 18.7 | 14 | 0.25 | 650 | 1 | 15.2 | H32B |
| 22 | 17 | 17.5 | 0.25 | 650 | 1 | 16.7 | H33B |
| 24 | 15.6 | 19 | 0.25 | 700 | 1 | 18.2 | H34B |
| 27 | 13.9 | 23 | 0.25 | 700 | 1 | 20.6 | H35B |
| 30 | 12.5 | 28 | 0.25 | 750 | 1 | 22.8 | H36B |
| 33 | 11.4 | 33 | 0.25 | 800 | 1 | 25.1 | H37B |
| 36 | 10.4 | 38 | 0.25 | 850 | 1 | 27.4 | H38B |
| 39 | 9.6 | 45 | 0.25 | 900 | 1 | 29.7 | H39B |
| 43 | 8.7 | 53 | 0.25 | 950 | 1 | 32.7 | H40B |
| 47 | 8 | 67 | 0.25 | 1000 | 1 | 35.8 | H41B |
| 51 | 7.3 | 70 | 0.25 | 1100 | 1 | 38.8 | H42B |
| 56 | 6.7 | 86 | 0.25 | 1300 | 1 | 42.6 | H43B |
| 62 | 6 | 100 | 0.25 | 1500 | 1 | 47.1 | H44B |
| 68 | 5.5 | 120 | 0.25 | 1700 | 1 | 51.7 | H45B |
| 75 | 5 | 140 | 0.25 | 2000 | 1 | 56 | H46B |
| 82 | 4.6 | 160 | 0.25 | 2500 | 1 | 62.2 | H47B |
| 91 | 4.1 | 200 | 0.25 | 3000 | 1 | 69.2 | H48B |
| 100 | 3.7 | 250 | 0.25 | 3100 | 1 | 76 | H49B |
| 110 | 3.4 | 300 | 0.25 | 4000 | 1 | 83.6 | H50B |
| 120 | 3.1 | 380 | 0.25 | 4500 | 1 | 91.2 | H51B |
| 130 | 2.9 | 450 | 0.25 | 5000 | 1 | 98.8 | H52B |
| 150 | 2.5 | 600 | 0.25 | 6000 | 1 | 114 | H53B |
| 160 | 2.3 | 700 | 0.25 | 6500 | 1 | 121.6 | H54B |
| 180 | 2.1 | 900 | 0.25 | 7000 | 1 | 136.8 | H55B |
| 200 | 1.9 | 1200 | 0.25 | 8000 | 1 | 152 | H56B |

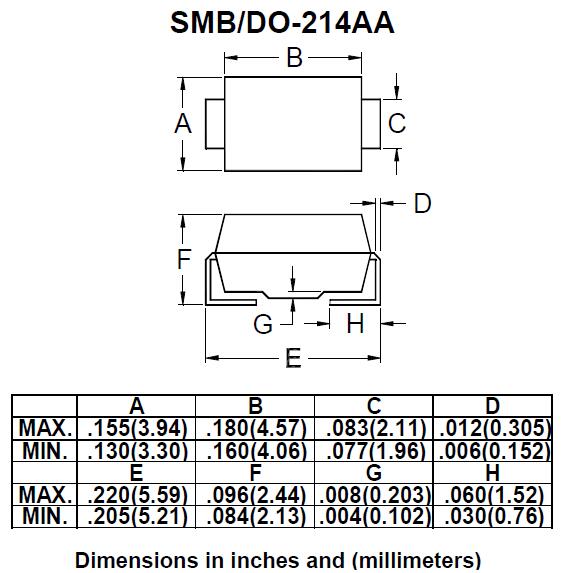

Drawing:
